Mondo Radius GU10

FEATURES

• Australian designed & manufactured architectural recessed low glare accent downlight
• LED lamp / PAR16 LED GU10 240V, offers various lamp options
• 359˚ rotation, 45˚ tilt adjustment
• Lumen options up to 750lm
• No remote driver required
• Dimmable
• COB / 12V MR16 versions available
• Serviceable IP20 downlight
• Ideal for residential / hospitality / gallery / museum & commercial applications
• IES files available on request

TRIM COLOURS: Inner standard as Black

• Black [ -2 ]
• White [ -3 ]
• White [ -3-3 ]
• Silver [ -6 ]
• Custom [ -5 ]

 ACCESSORIES:

• Deco glass filter holder (CHL)
• Frosted glass 30mm (FG)
• Deco colour glass 50mm (DG)
• AL 20 HoneyComb filter



CODE RAD11 RAD12 RAD13 RAD15

LAMP TYPE PAR16 PAR16 PAR16 PAR16

WATTAGE 1 X 8.5W 2 X 8.5W 3 X 8.5W 4 X 8.5W

LUMENS & COLOUR TEMP 660/700/750 - 2700K/3000K/4000K 660/700/750 - 2700K/3000K/4000K 660/700/750 - 2700K/3000K/4000K 660/700/750 - 2700K/3000K/4000K

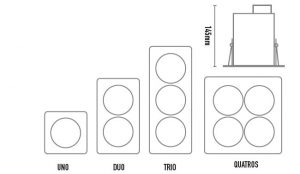

DIMENSIONS UNO 135mm x 135mm / cutout 126mm x 110mm DUO 135mm x 236mm / cutout 126mm x 210mm TRIO 135mm x 338mm / cutout 126mm x 320mm QUATRO SQ 236mm x 236mm / cutout 215mm x 228mm
