Mini Mondo Square COB – PRO

FEATURES

  • Australian designed & manufactured professional recessed low glare accent LED downlight
  • Adjustable 20° two way tilt
  • Lumen options 980lm up to 1510lm/CRI 80/CRI 90
  • Requires remote electronic driver
  • Specify -non dim/phase-cut dim/dali dim
  • Dali - smart phone Bluetooth connectivity available on request
  • Dali dim 100% -0.1% option available on request
  • Casambi Bluetooth wireless mesh control system available on request
  • Colour temps available: 2700K/3000K/4000K
  • Serviceable IP20 downlight
  • Ideal for commercial/hospitality/retail/gallery/museum & residential applications
  • IES files available on request

COLOURS

  • Black [ -2 ]
  • White [ -3 ]
  • Silver [ -6 ]
  • Custom [ -5 ]

CODE

  • MSQ501
  • MSQ502
  • MSQ503

LAMP TYPE

  • COB
  • COB
  • COB

WATTAGE

  • 12.3W
  • 12.3W
  • 12.3W

LUMENS & COLOUR TEMP

  • 980lm / 3000K
  • 1960lm / 3000K
  • 2940lm / 3000K

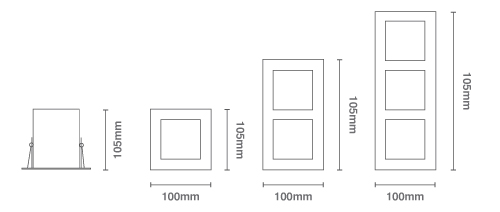

DIMENSIONS

  • UNO - 100mm x 100mm x 80mm height - cutout 95mm diameter
  • DUO - 180mm x 100mm x 80mm height - cutout 90mm x 165mm
  • TRIO - 260mm x 100mm x 105mm height - cutout 90mm x 245mm
